Integrating SAP Sales and Service Cloud with SAP S/4HANA

1. Introduction to SAP Sales and Service Cloud
‍

SAP Sales and Service Cloud is SAP's modern, cloud-based CRM solution that integrates the functionalities of both SAP Sales Cloud and SAP Service Cloud. This unified platform enhances sales automation, streamlines customer service operations, and elevates overall customer experience management. Previously known as SAP Cloud for Customer (SAP C4C) and SAP Customer OnDemand (SAP COD), these legacy terms may still appear in system configurations and integrations, making familiarity with them essential during implementation.

2. User Interface Overview
‍

SAP Sales and Service Cloud offers a responsive, web-based interface accessible through standard browsers and mobile applications. Key features include:

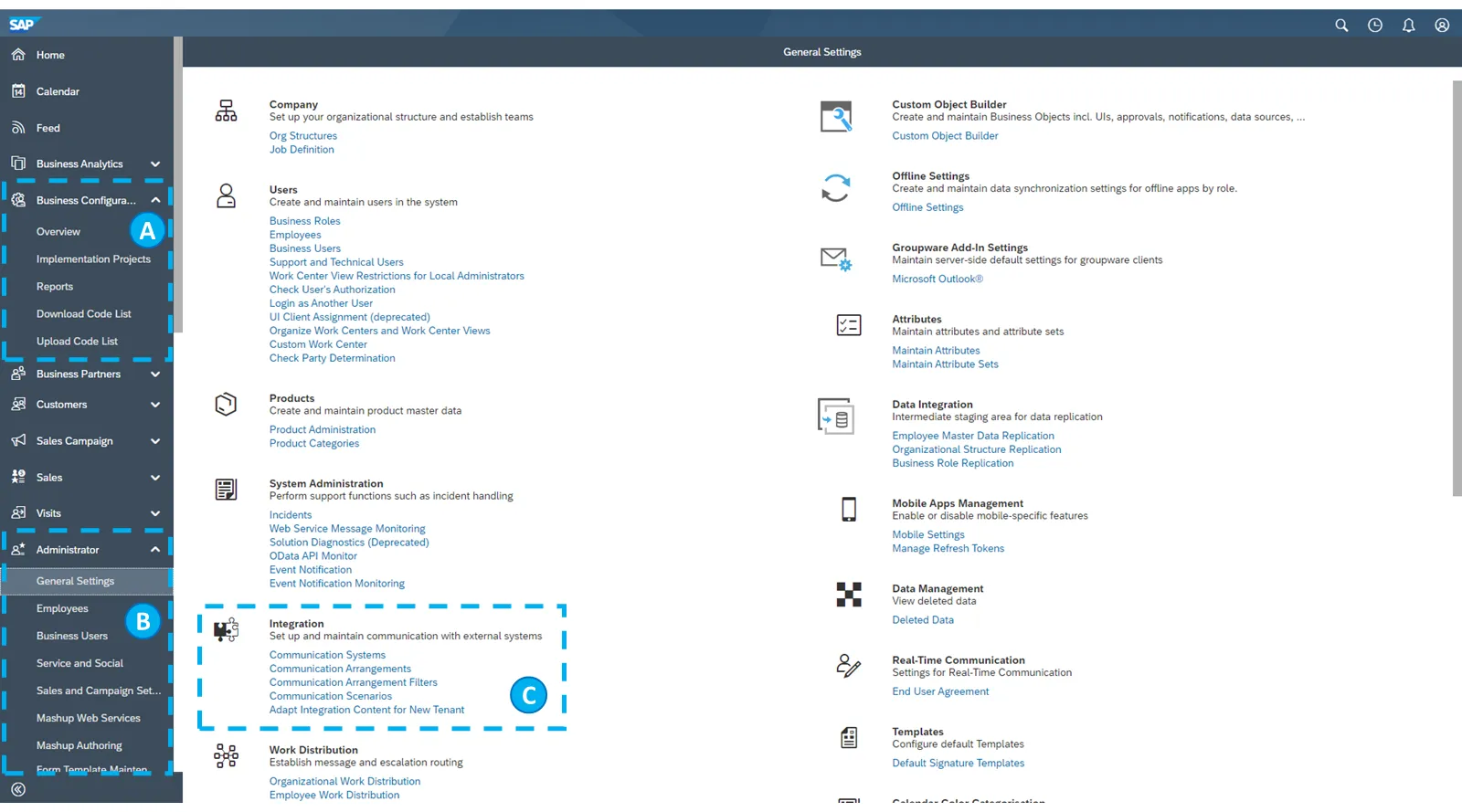

• Work Centers and Views: Functionality is organized into specific areas called work centers and work center views, accessible via the navigation bar on the left.

• General Settings: Located within the Administrator work center, this view allows users to manage core configuration options.

The intuitive design ensures efficient operation across various devices, enhancing usability for sales and service teams.

3. Introduction to SAP Cloud Integration
‍

SAP Cloud Integration, part of the SAP Integration Suite, is a cloud-based platform that facilitates the integration of applications and systems across an organization's IT landscape. Key capabilities include:

• Seamless Integration: Connects on-premises and cloud applications, enabling real-time data exchange.

• Workflow Automation: Automates business processes across diverse enterprise systems.

• Broad Connectivity: Supports integration with platforms like SAP S/4HANA, SAP SuccessFactors, third-party SaaS solutions, and legacy systems.

This integration capability is crucial for end-to-end business process integration and accelerating digital transformation initiatives.

4. Runtime Environments
‍

SAP Cloud Integration operates on the SAP Business Technology Platform (SAP BTP) and is available in two environments:

• Neo: The older environment, now being phased out.

• Cloud Foundry (CF): The newer environment based on open-source technology, offering flexibility to run on various infrastructure providers.



‍

5. Introduction to SAP S/4HANA

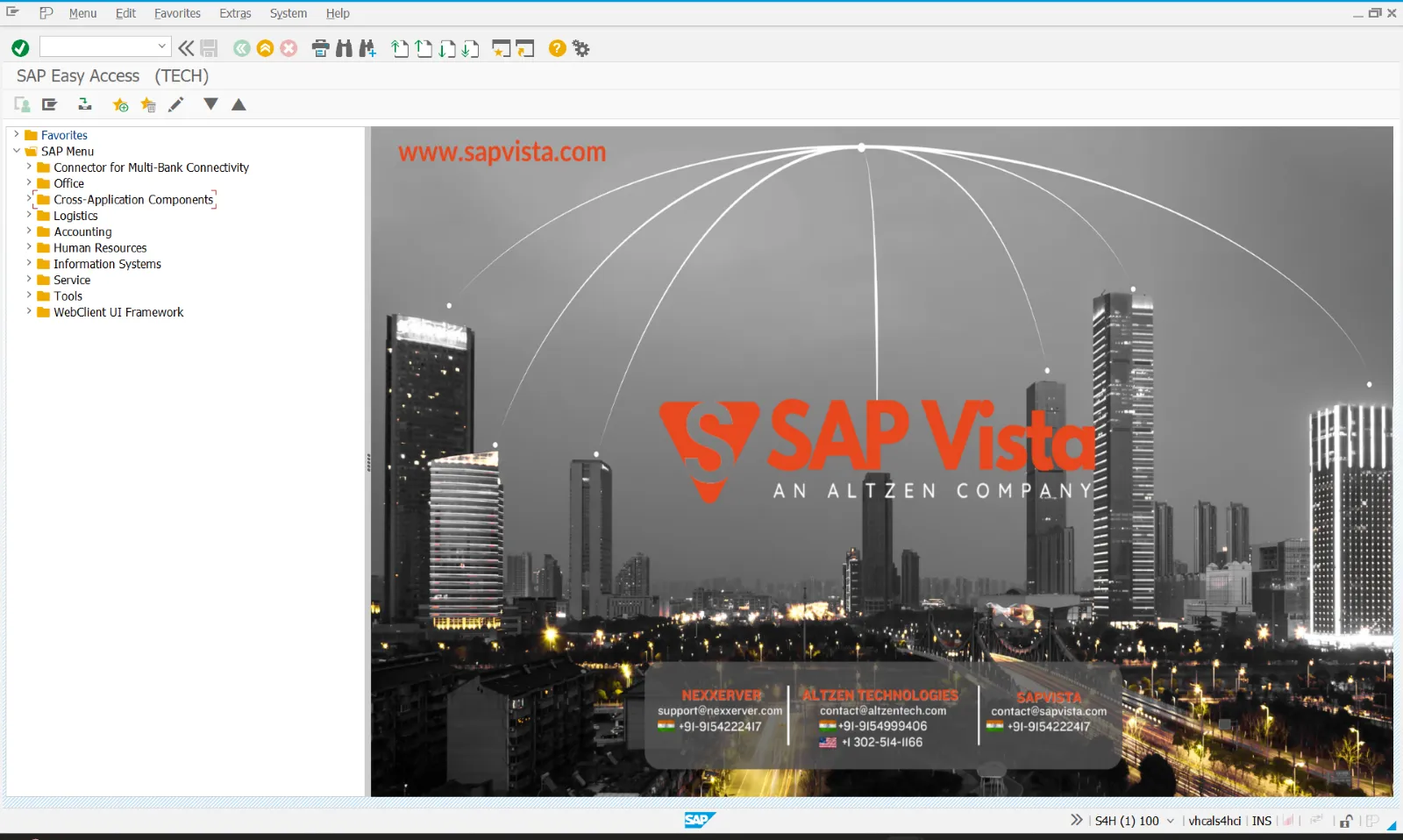

SAP S/4HANA is SAP's next-generation enterprise resource planning (ERP) suite. Unlike the web-based interfaces of SAP Sales and Service Cloud and SAP Cloud Integration, most administrative tasks in SAP S/4HANA are performed using the traditional SAP GUI (Graphical User Interface).

6. Configuring SAP Sales and Service Cloud

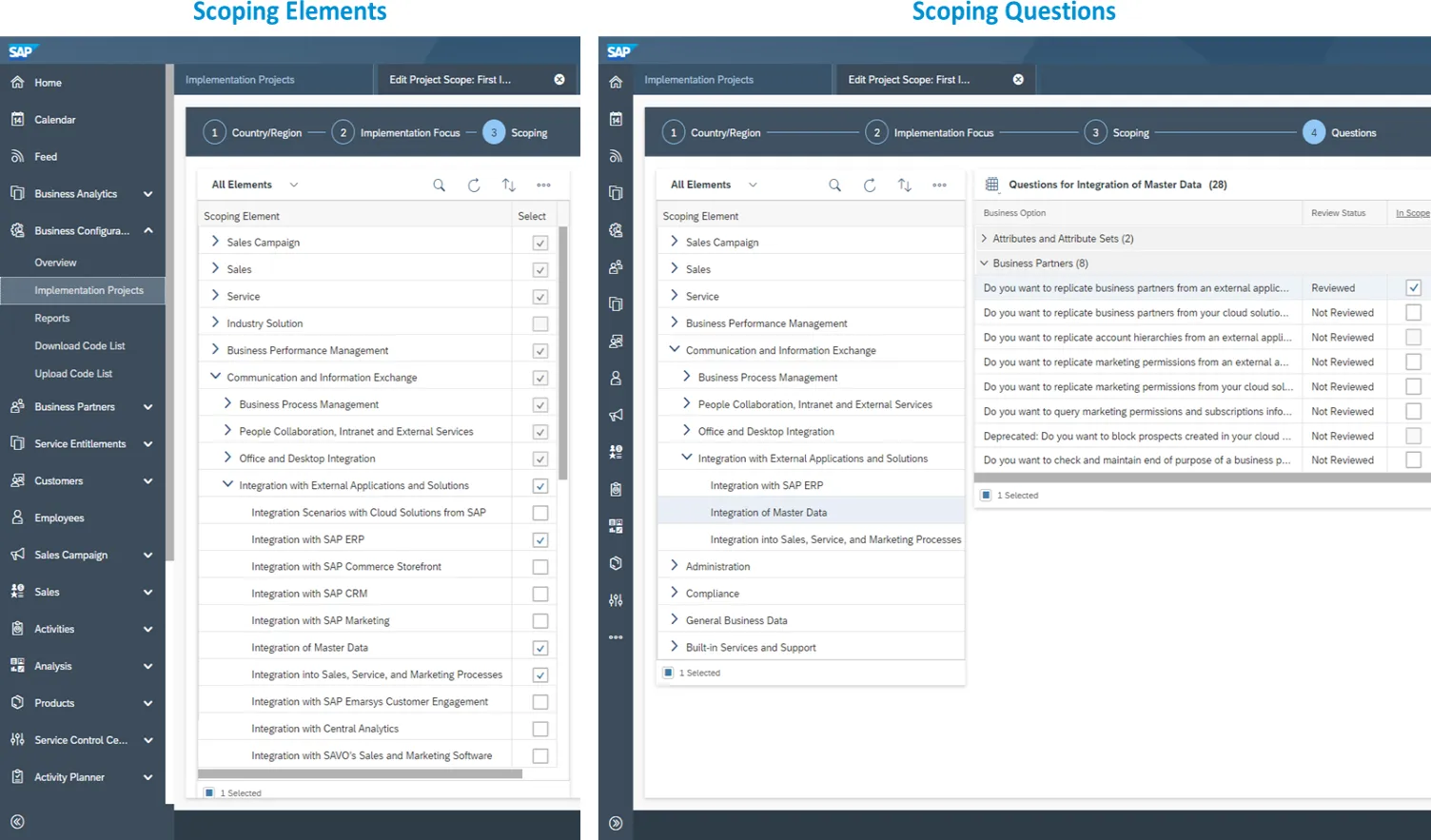

6.1. Scoping

Scoping is the initial step in configuring SAP Sales and Service Cloud, enabling core system functionalities and integrations. Steps include:

• Access Business Configuration Work Center: Navigate to the Implementation Projects view.

• Activate Scoping Items: Identify and include required scoping elements for integration.

• Answer Scoping Questions: Fine-tune system behavior and capabilities, particularly for integration and customization.



‍

For integrating SAP S/4HANA or SAP ERP, ensure the following scoping elements are selected:

• Integration with SAP ERP

• Integration of Master Data

• Integration into Sales, Service, and Marketing Processes

6.2. Communication System and Arrangements

After scoping, configure the communication system and arrangements:

• Create Communication System: Define the external system for integration.

• Configure Communication Arrangements: Set up specific communication scenarios, such as replicating business partners or materials from SAP Business Suite.

These arrangements define settings like code list mappings, endpoint URLs, and authentication details.
‍

6.3. Code List Mapping

Code List Mapping translates technical codes between systems. Steps include:

• Access Fine Tuning Activity

• Maintain Code List

• Map Codes

6.4. ID Mapping

ID Mapping aligns object identifiers between systems. Steps include:

• Automatic Mapping: Occurs during object replication from another system.

• Manual Maintenance: Users can manually maintain ID mappings as needed.

6.5. Maintain Number Ranges

Define number ranges for various objects to ensure unique identification across systems.

7. Configuring SAP Cloud Integration

7.1. Integration Package Management

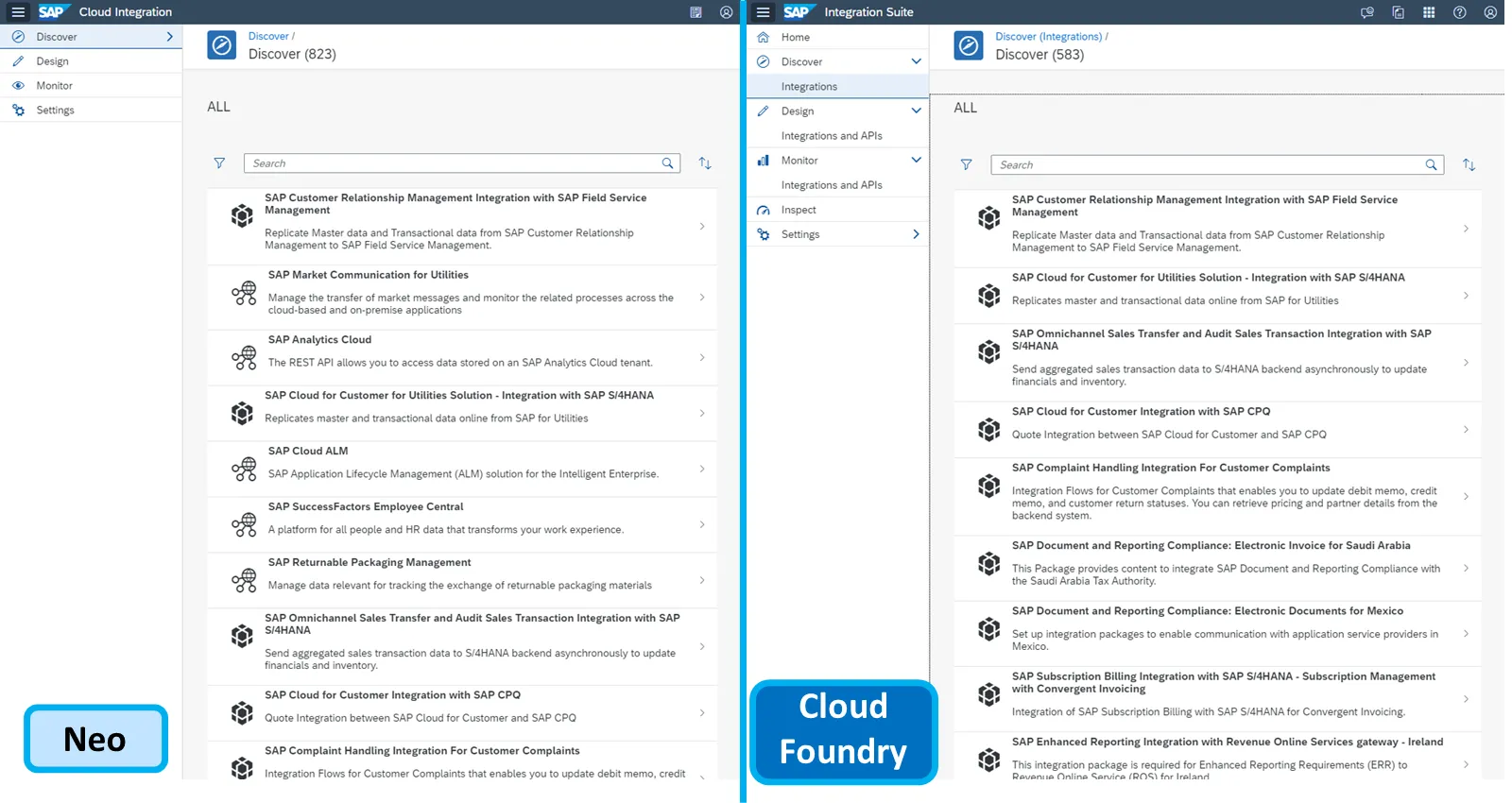

• Discover View: Search and copy the required integration package to your tenant workspace.

• Design View: Configure integration flows (iFlows), editing parameters like endpoints and value mappings.

• Deploy Integration Content: Activate the integration flows for data exchange.

• Monitor View: Track message processing, manage errors, and verify successful integration.

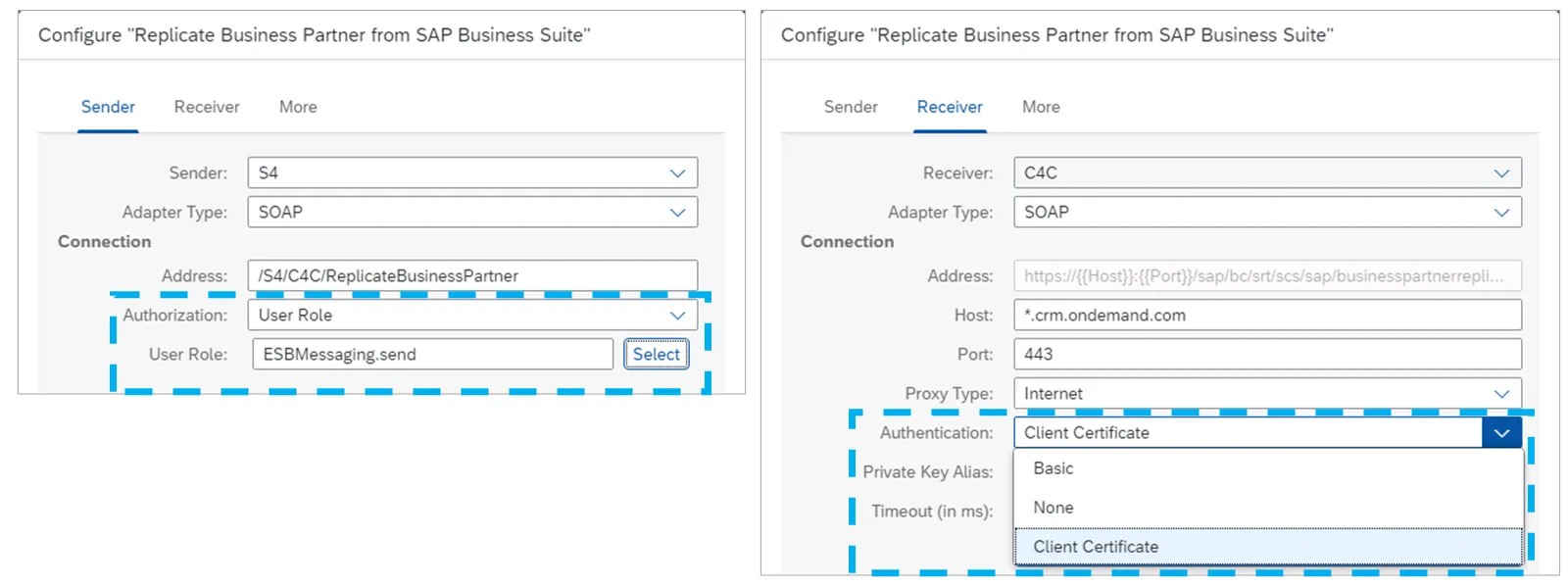

7.2. Credential Maintenance

Manage authentication credentials for secure data exchange:

• Inbound Connections: Define user roles required to call the integration flow.

• Outbound Connections: Specify credentials or private key aliases for authentication towards the receiver system.

8. Configuring SAP S/4HANA

8.1. Technical Configuration

Prepare Integration Setup:

• Activate Business Configuration Set

• Activate inbound IDoc endpoint

• Create integration user

• Perform SSL configuration via Certificate Management

• Define number intervals for IDoc processing

• Execute Connectivity Report (transaction RCOD_CONNECTIVITY or report RCOD_CREATE_CONNECTIVITY_SIMPL)

Review Generated Settings:

• Validate IDoc configuration (partner profiles, ports, RFC destinations)

• Confirm web service configuration using SOAMANAGER

• Schedule and verify background jobs for data exchange

8.2. Data Replication Framework (DRF)

Set up DRF for master data replication:

• Define Business System: Specify the receiving system for data replication.

• Set Up Replication Model: Create models for business objects like products (194) and business partners (986).

• Configure Filtering Options: Define criteria for efficient data transfer.

9. Configuring the Sample Scenario in All Systems

9.1. SAP S/4HANA Configuration

For transactional integration scenarios:

• Enable External Pricing Requests: Activate relevant web service endpoints.

• Receive Sales Quote Follow-Up Data: Ensure IDoc configurations are in place.

• Review Integration Settings: Use transaction WE20 to inspect partner profiles and message types.

• Activate Web Service Endpoint: In SOAMANAGER, configure COD_SALESORDER_SIMULATE with appropriate authentication.

9.2. Cloud Integration Configuration

Adjust integration flows for transactional data exchange:

• Create Authentication Credentials: Set up credentials for connecting to SAP S/4HANA.

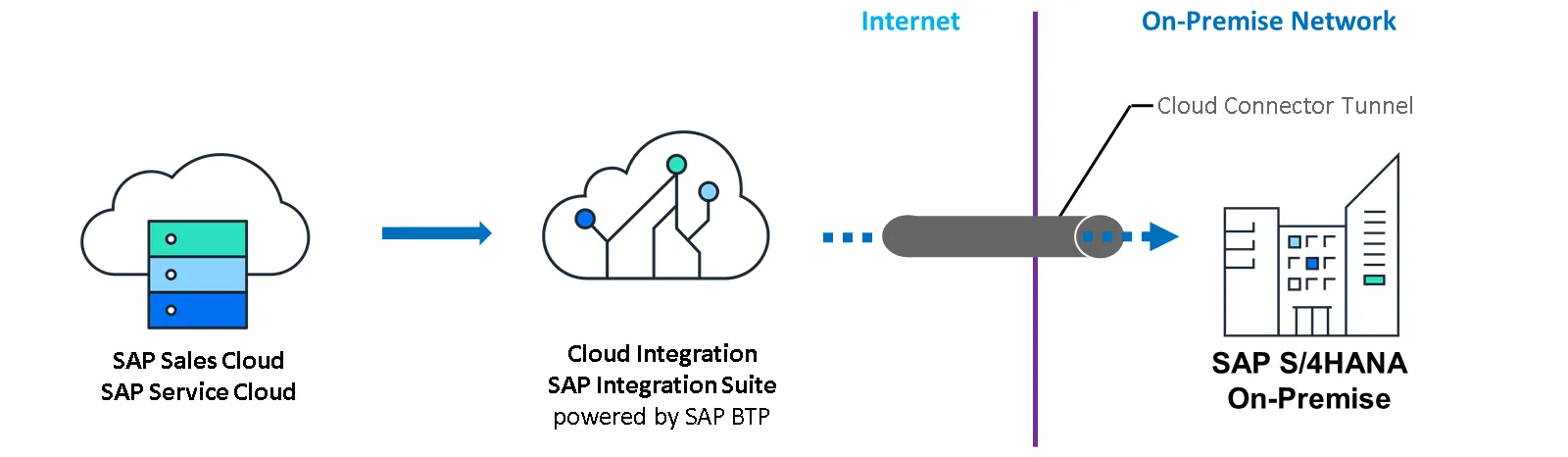

• Configure SAP BTP Cloud Connector: Establish a secure tunnel between cloud and on-premise systems.

• Adjust Integration Flows: Ensure flows accommodate connectivity for transactional data like sales orders.


‍
